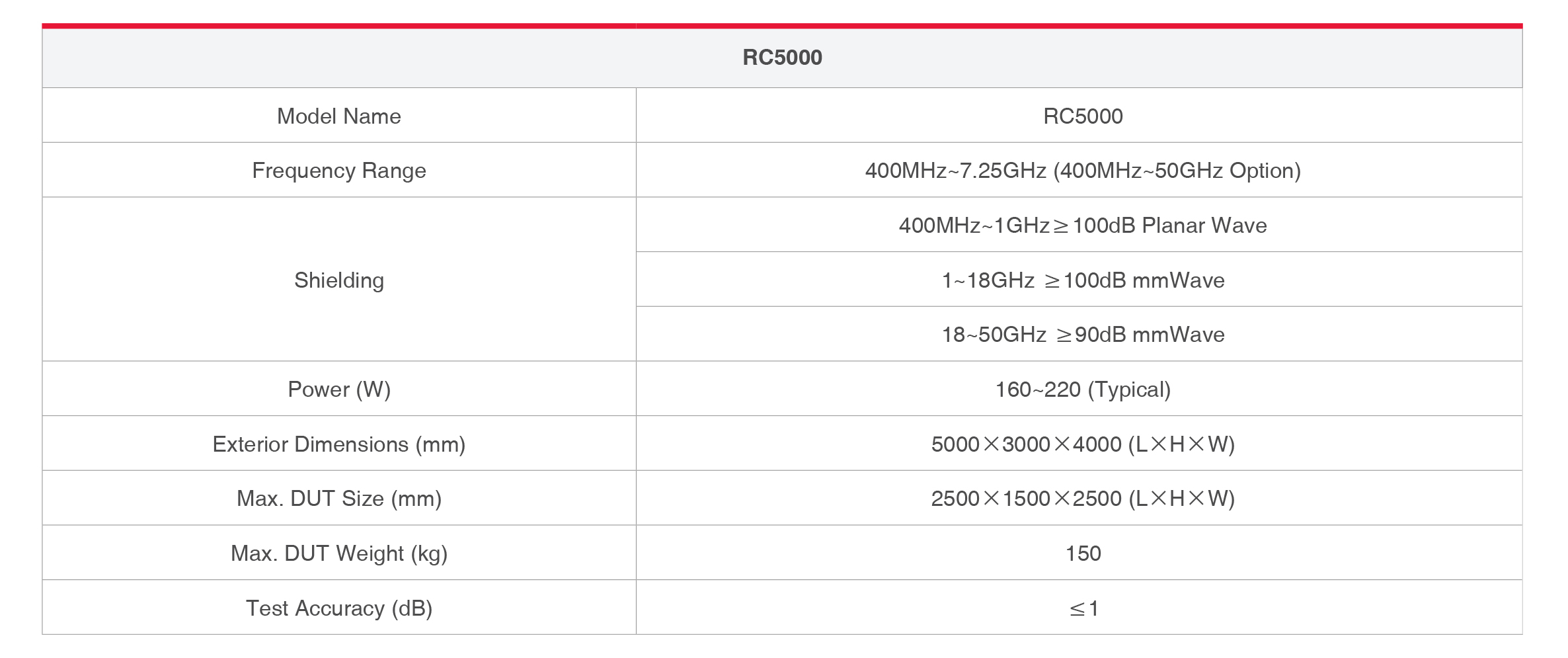

RC5000
Wireless terminal quality inspection level
supports 5G FR2 OTA test system
Product Description
RC5000 reverberation chamber consists of reflective metal walls, positoner, and horizontal and vertical stirrers. The multiple reflection signals generate a multipath reflection environment in the reverberation chamber, through the movement or rotation of the positoner and the stirrers, the electromagnetic field inside the chamber is superimposed from varous directions, resulting in the mathematically representation of plane waves superposition in different directions, thus a quiet zone is realized in the mathematical sense.
Unlike conventional direct far-field testing method, a reverberation chamber does not require the distance between DUT and test probe to satisfy far-field conditions. Therefore, compared to an anehoic chamer, a reverberation chamber of the same size can provide a larger quiet zone. This makes it particularly suitable for testing large-sacle DUTs.
Product Advantages
Customized on demand
Considering the actual space limitations of our customers' sites, in addition to our standard products, we can also provide customized solutions to achieve the maximum quiet zone within limited space.
Precise measurement
Starting from the principle, GTS proposed the five-axis mixing reverberation chamber, greatly improving the test accuracy. In addition to the rotation of the turntable, horizontal mixer and vertical mixer, the horizontal mixer and vertical mixer can also be moved to improve field uniformity.
Cost-effective
The product is completely domestically produced, with key components independently developed, particularly the probe antenna and core algorithms. Due to its high degree of localization, this reverberation chamber has a relatively high cost-performance ratio.
High-performance software platform
The system adopts a high-performance software platform, based on the principle of "high cohesion, low coupling", to achieve high flexibility and stability. This software design approach provides convenience for future system upgrades. For example, customized anti-jamming tests.
Test Software
- Arbitrary selection of test point to review all test data of it.
- Comprehensive raw test data and Log files management. Traceable and nonmodifiable test process.
- Resourceful built-in templates, preconfigured parameters compatible with different instruments and test platforms. Simple manipulations effectively prevent operational errors.
- User-defined test step, test angle and test configuration.
- Wide variety of test assistant functions, such as anti-drop-call, auto-recall and abnormal situation warnings. Improves the test processes' reliability and smoothness.
